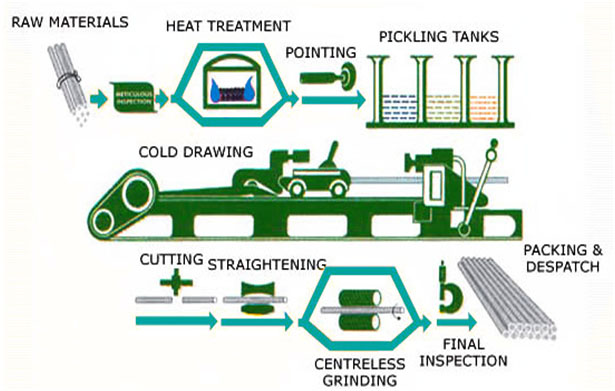

Bright Steel Bars-Cold Drawn are made from Hot Rolled Bars/Wire Rod Coils through the process of Cold Drawing, Centreless Grinding. It gives greater dimensional accuracy, straightness, smooth surface, free from surface defects and enhanced mechanical properties to the product.

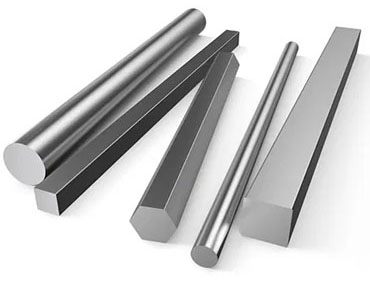

Bright Steel Bars are manufactured in a variety of shapes and sizes, according to various specifications of steel, and conforming to BSS, EN series, SAE, ISI, DIN, AISI, which signifies reliability and quality that the company focuses on.
| Execution | MM | Inches | ISO Tolerance |
| Cold Drawn and Polish | 5 - 100 | 3/16" - 4" | h8-h9-h10-h11, ASTMA - 484 |
| Cold Drawn and Ground | 2 – 75 | 1/8 " - 3" | h8-h9-h10-h11 |
| Execution | MM | Inches | ISO Tolerance |
| Cold Drawn | 5 - 80 | 1/4" - 3" | h11 |
| Turned and polished | 80 - 150 | 3 ¼” – 6" | h8-h9-h10-h11, |
| Execution | MM | Inches | ISO Tolerance |
| Cold Drawn | 5 – 75 | 3/16" - 3" | h11 |
| Execution | Width (MM) | Thickness (MM) | ISO Tolerance |
| Cold Drawn | 12 - 100 | 5- 40 | h11 |
|
Steel Type |
Grades |
Specification |
Typical Application |
|
Mild Steel & Carbon Steel |
1008, 1010, 1015, 1018, |
AISI |
General Engineering Purpose |
|
Free Cutting Steel |
EN1A, EN1A(L) |
BS 970 Part 1 |
High machinability, used in automatic and CNC machines in mass production of components like Engine Shafts, Connecting components like Engine Shafts, Connecting rods, Spindles etc. |
|
Alloy Steel |
16MnCr5, 20MnCr5 |
DIN 17210 |
Diverse applications in manufacture |
|
Spring Steel |
EN45A,60SicR7, |
DIN 17221 |
Used in manufacturing of springs and components for suspention |
|
Bearing Steel |
SAE 52100, |
SAE 1976 |
Excellent hardness and fatigue |
